SDWebImageManager

前言
#

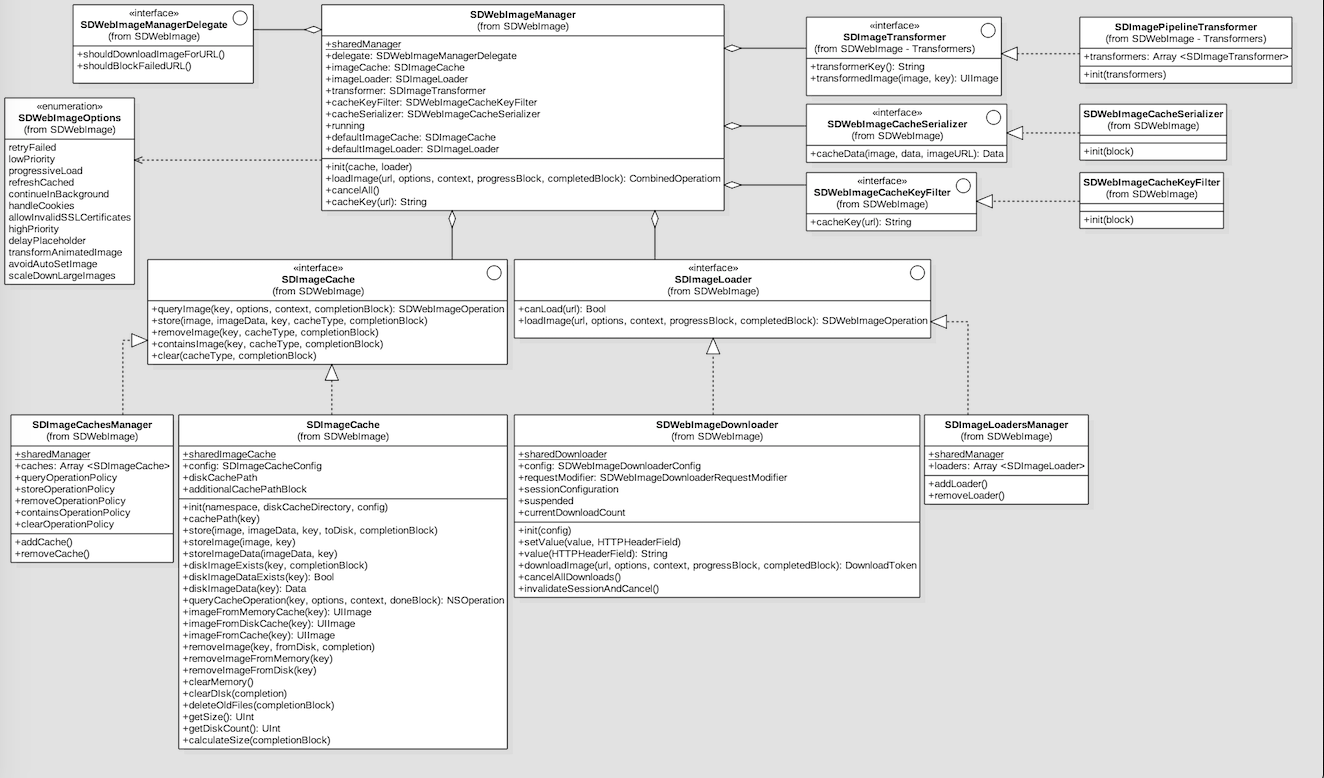

SDWebImageManager 是一个单利，管理整个 SDWebImge 这个库的下载，缓存，回调展示。

属性功能有 imageCache（查找工具），imageLoader（下载工具），runningOperations（用以放 DWebImageCombinedOperation）。failedURLsLock，runningOperationsLock是dispatch_semaphore_t锁。信号量为 1，即只能用一个线程访问如果多个线程访问就会阻塞问题。保证写入数据时候只能一个线程操作。

SDWebImageManager 中方法逻辑

SDWebImageCombinedOperation
#

SDWebImageCombinedOperation，这个联合操作具有下载，缓存两个功能。以属性的形式依附在SDWebImageCombinedOperation中。每一图片都有经历下载和缓存两个步骤所以用一个联合操作定义这两个步骤。为了说明联合操作有取消的功能，必须实现 cancnel方法。
SDWebImageCombinedOperation会与 key 进行关联，UIView+WebCache.m可以看出来相应的关联。
因为SDWebImageCombinedOperation 只有在 SDWebImageManager 中使用，所以定义在一起。同时SDWebImageCombinedOperation 对象有个 weak SDWebImageManager 对象，方便拿到自己的属于的管理者。
SDWebImageCombinedOperation会被加到 SDWebImageManager 对象的 NSMutableSet 属性中。方便会被加到 SDWebImageManager 统一管理。（统一取消操作）

- (SDWebImageCombinedOperation *)loadImageWithURL:(nullable NSURL *)url
                                          options:(SDWebImageOptions)options
                                          context:(nullable SDWebImageContext *)context
                                         progress:(nullable SDImageLoaderProgressBlock)progressBlock
                                        completed:(nonnull SDInternalCompletionBlock)completedBlock {
    // Invoking this method without a completedBlock is pointless
    NSAssert(completedBlock != nil, @"If you mean to prefetch the image, use -[SDWebImagePrefetcher prefetchURLs] instead");

    // Very common mistake is to send the URL using NSString object instead of NSURL. For some strange reason, Xcode won't
    // throw any warning for this type mismatch. Here we failsafe this error by allowing URLs to be passed as NSString.
    if ([url isKindOfClass:NSString.class]) {
        url = [NSURL URLWithString:(NSString *)url];
    }

    // Prevents app crashing on argument type error like sending NSNull instead of NSURL
    if (![url isKindOfClass:NSURL.class]) {
        url = nil;
    }

    SDWebImageCombinedOperation *operation = [SDWebImageCombinedOperation new];
    operation.manager = self;

    BOOL isFailedUrl = NO;
    if (url) {
        SD_LOCK(self.failedURLsLock);
        isFailedUrl = [self.failedURLs containsObject:url];
        SD_UNLOCK(self.failedURLsLock);
    }

    if (url.absoluteString.length == 0 || (!(options & SDWebImageRetryFailed) && isFailedUrl)) {
        [self callCompletionBlockForOperation:operation completion:completedBlock error:[NSError errorWithDomain:SDWebImageErrorDomain code:SDWebImageErrorInvalidURL userInfo:@{NSLocalizedDescriptionKey : @"Image url is nil"}] url:url];
        return operation;
    }

    SD_LOCK(self.runningOperationsLock);
    [self.runningOperations addObject:operation];
    SD_UNLOCK(self.runningOperationsLock);

    // Preprocess the options and context arg to decide the final the result for manager
    SDWebImageOptionsResult *result = [self processedResultForURL:url options:options context:context];

    // Start the entry to load image from cache
    [self callCacheProcessForOperation:operation url:url options:result.options context:result.context progress:progressBlock completed:completedBlock];

    return operation;
}

Query cache process
#

Query cache process 缓存查询，使用 block 逆传值。查询不到后进行下载操作。下载完成后先缓存缓存。

根据shouldQueryCache判断是否直接进行下载即执行还是经历过查找缓存后进行下载。
根据传进来的联合操作判断是否用户取消了这个操作，如果取消了，直接进行 return。并给外界相应的提示。

整体方法

// Query cache process
- (void)callCacheProcessForOperation:(nonnull SDWebImageCombinedOperation *)operation
                                 url:(nonnull NSURL *)url
                             options:(SDWebImageOptions)options
                             context:(nullable SDWebImageContext *)context
                            progress:(nullable SDImageLoaderProgressBlock)progressBlock
                           completed:(nullable SDInternalCompletionBlock)completedBlock {
    // Check whether we should query cache
    BOOL shouldQueryCache = !SD_OPTIONS_CONTAINS(options, SDWebImageFromLoaderOnly);
    if (shouldQueryCache) {
        id<SDWebImageCacheKeyFilter> cacheKeyFilter = context[SDWebImageContextCacheKeyFilter];
        NSString *key = [self cacheKeyForURL:url cacheKeyFilter:cacheKeyFilter];
        @weakify(operation);
        operation.cacheOperation = [self.imageCache queryImageForKey:key options:options context:context completion:^(UIImage * _Nullable cachedImage, NSData * _Nullable cachedData, SDImageCacheType cacheType) {
            @strongify(operation);
            if (!operation || operation.isCancelled) {
                // Image combined operation cancelled by user
                [self callCompletionBlockForOperation:operation completion:completedBlock error:[NSError errorWithDomain:SDWebImageErrorDomain code:SDWebImageErrorCancelled userInfo:nil] url:url];
                [self safelyRemoveOperationFromRunning:operation];
                return;
            }
            // Continue download process
            [self callDownloadProcessForOperation:operation url:url options:options context:context cachedImage:cachedImage cachedData:cachedData cacheType:cacheType progress:progressBlock completed:completedBlock];
        }];
    } else {
        // Continue download process
        [self callDownloadProcessForOperation:operation url:url options:options context:context cachedImage:nil cachedData:nil cacheType:SDImageCacheTypeNone progress:progressBlock completed:completedBlock];
    }
}

带缓存结果的下载操作

  // Continue download process
            [self callDownloadProcessForOperation:operation url:url options:options context:context cachedImage:cachedImage cachedData:cachedData cacheType:cacheType progress:progressBlock completed:completedBlock];

不带缓存结果的下载操作

  // Continue download process
        [self callDownloadProcessForOperation:operation url:url options:options context:context cachedImage:nil cachedData:nil cacheType:SDImageCacheTypeNone progress:progressBlock completed:completedBlock];

区别是 cachedImage 是否为 nil。

Download process
#

主方法为callDownloadProcessForOperation。这个是在 Query cache process 过程总调用。callDownloadProcessForOperation都会接入 cachedImage 只是为 nil 或者有值。检查是否应该下载，如果缓存图片不在，或者 SDWebImageRefreshCached 就应该进行下载。其中如果缓存图片存在，且设置为 SDWebImageRefreshCached callCompletionBlockForOperation是需要调用两次。

注意缓存图片存在有可能也要下载，由 SDWebImageRefreshCached。

// Download process
- (void)callDownloadProcessForOperation:(nonnull SDWebImageCombinedOperation *)operation
                                    url:(nonnull NSURL *)url
                                options:(SDWebImageOptions)options
                                context:(SDWebImageContext *)context
                            cachedImage:(nullable UIImage *)cachedImage
                             cachedData:(nullable NSData *)cachedData
                              cacheType:(SDImageCacheType)cacheType
                               progress:(nullable SDImageLoaderProgressBlock)progressBlock
                              completed:(nullable SDInternalCompletionBlock)completedBlock {
    // Check whether we should download image from network
    BOOL shouldDownload = !SD_OPTIONS_CONTAINS(options, SDWebImageFromCacheOnly);
    shouldDownload &= (!cachedImage || options & SDWebImageRefreshCached);
    shouldDownload &= (![self.delegate respondsToSelector:@selector(imageManager:shouldDownloadImageForURL:)] || [self.delegate imageManager:self shouldDownloadImageForURL:url]);
    shouldDownload &= [self.imageLoader canRequestImageForURL:url];
    if (shouldDownload) {
        if (cachedImage && options & SDWebImageRefreshCached) {
            // If image was found in the cache but SDWebImageRefreshCached is provided, notify about the cached image
            // AND try to re-download it in order to let a chance to NSURLCache to refresh it from server.
            [self callCompletionBlockForOperation:operation completion:completedBlock image:cachedImage data:cachedData error:nil cacheType:cacheType finished:YES url:url];
            // Pass the cached image to the image loader. The image loader should check whether the remote image is equal to the cached image.
            SDWebImageMutableContext *mutableContext;
            if (context) {
                mutableContext = [context mutableCopy];
            } else {
                mutableContext = [NSMutableDictionary dictionary];
            }
            mutableContext[SDWebImageContextLoaderCachedImage] = cachedImage;
            context = [mutableContext copy];
        }

        @weakify(operation);
        operation.loaderOperation = [self.imageLoader requestImageWithURL:url options:options context:context progress:progressBlock completed:^(UIImage *downloadedImage, NSData *downloadedData, NSError *error, BOOL finished) {
            @strongify(operation);
            if (!operation || operation.isCancelled) {
                // Image combined operation cancelled by user
                [self callCompletionBlockForOperation:operation completion:completedBlock error:[NSError errorWithDomain:SDWebImageErrorDomain code:SDWebImageErrorCancelled userInfo:nil] url:url];
            } else if (cachedImage && options & SDWebImageRefreshCached && [error.domain isEqualToString:SDWebImageErrorDomain] && error.code == SDWebImageErrorCacheNotModified) {
                // Image refresh hit the NSURLCache cache, do not call the completion block
            } else if ([error.domain isEqualToString:SDWebImageErrorDomain] && error.code == SDWebImageErrorCancelled) {
                // Download operation cancelled by user before sending the request, don't block failed URL
                [self callCompletionBlockForOperation:operation completion:completedBlock error:error url:url];
            } else if (error) {
                [self callCompletionBlockForOperation:operation completion:completedBlock error:error url:url];
                BOOL shouldBlockFailedURL = [self shouldBlockFailedURLWithURL:url error:error];

                if (shouldBlockFailedURL) {
                    SD_LOCK(self.failedURLsLock);
                    [self.failedURLs addObject:url];
                    SD_UNLOCK(self.failedURLsLock);
                }
            } else {
                if ((options & SDWebImageRetryFailed)) {
                    SD_LOCK(self.failedURLsLock);
                    [self.failedURLs removeObject:url];
                    SD_UNLOCK(self.failedURLsLock);
                }
                // Continue store cache process
                [self callStoreCacheProcessForOperation:operation url:url options:options context:context downloadedImage:downloadedImage downloadedData:downloadedData finished:finished progress:progressBlock completed:completedBlock];
            }

            if (finished) {
                [self safelyRemoveOperationFromRunning:operation];
            }
        }];
    } else if (cachedImage) {
        [self callCompletionBlockForOperation:operation completion:completedBlock image:cachedImage data:cachedData error:nil cacheType:cacheType finished:YES url:url];
        [self safelyRemoveOperationFromRunning:operation];
    } else {
        // Image not in cache and download disallowed by delegate
        [self callCompletionBlockForOperation:operation completion:completedBlock image:nil data:nil error:nil cacheType:SDImageCacheTypeNone finished:YES url:url];
        [self safelyRemoveOperationFromRunning:operation];
    }
}

从方法主方法中可以看到下载完成后并没有立即调用 callCompletionBlockForOperation而是调用了callStoreCacheProcessForOperation。

Store cache process
#

这个函数主要进行已经下载图片缓存处理。

// Store cache process
- (void)callStoreCacheProcessForOperation:(nonnull SDWebImageCombinedOperation *)operation
                                      url:(nonnull NSURL *)url
                                  options:(SDWebImageOptions)options
                                  context:(SDWebImageContext *)context
                          downloadedImage:(nullable UIImage *)downloadedImage
                           downloadedData:(nullable NSData *)downloadedData
                                 finished:(BOOL)finished
                                 progress:(nullable SDImageLoaderProgressBlock)progressBlock
                                completed:(nullable SDInternalCompletionBlock)completedBlock {
    // the target image store cache type
    SDImageCacheType storeCacheType = SDImageCacheTypeAll;
    if (context[SDWebImageContextStoreCacheType]) {
        storeCacheType = [context[SDWebImageContextStoreCacheType] integerValue];
    }
    // the original store image cache type
    SDImageCacheType originalStoreCacheType = SDImageCacheTypeNone;
    if (context[SDWebImageContextOriginalStoreCacheType]) {
        originalStoreCacheType = [context[SDWebImageContextOriginalStoreCacheType] integerValue];
    }
    id<SDWebImageCacheKeyFilter> cacheKeyFilter = context[SDWebImageContextCacheKeyFilter];
    NSString *key = [self cacheKeyForURL:url cacheKeyFilter:cacheKeyFilter];
    id<SDImageTransformer> transformer = context[SDWebImageContextImageTransformer];
    id<SDWebImageCacheSerializer> cacheSerializer = context[SDWebImageContextCacheSerializer];

    BOOL shouldTransformImage = downloadedImage && (!downloadedImage.sd_isAnimated || (options & SDWebImageTransformAnimatedImage)) && transformer;
    BOOL shouldCacheOriginal = downloadedImage && finished;
    BOOL waitStoreCache = SD_OPTIONS_CONTAINS(options, SDWebImageWaitStoreCache);

    // if available, store original image to cache是否缓存原始数据
    if (shouldCacheOriginal) {
        // normally use the store cache type, but if target image is transformed, use original store cache type instead通常使用存储缓存类型，但如果转换了目标图像，则使用原始存储缓存类型，急返回格式的确定。
        SDImageCacheType targetStoreCacheType = shouldTransformImage ? originalStoreCacheType : storeCacheType;
        if (cacheSerializer && (targetStoreCacheType == SDImageCacheTypeDisk || targetStoreCacheType == SDImageCacheTypeAll)) {
            dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_HIGH, 0), ^{
                @autoreleasepool {
                    NSData *cacheData = [cacheSerializer cacheDataWithImage:downloadedImage originalData:downloadedData imageURL:url];
                    //// 在磁盘中缓存图像，使用cacheData
                    [self storeImage:downloadedImage imageData:cacheData forKey:key cacheType:targetStoreCacheType waitStoreCache:waitStoreCache completion:^{
                        // Continue transform process
                        [self callTransformProcessForOperation:operation url:url options:options context:context originalImage:downloadedImage originalData:downloadedData finished:finished progress:progressBlock completed:completedBlock];
                    }];
                }
            });
        } else {
        //缓存图像，使用downloadedData
            [self storeImage:downloadedImage imageData:downloadedData forKey:key cacheType:targetStoreCacheType waitStoreCache:waitStoreCache completion:^{
                // Continue transform process
                [self callTransformProcessForOperation:operation url:url options:options context:context originalImage:downloadedImage originalData:downloadedData finished:finished progress:progressBlock completed:completedBlock];
            }];
        }
    } else {
        // Continue transform process
        [self callTransformProcessForOperation:operation url:url options:options context:context originalImage:downloadedImage originalData:downloadedData finished:finished progress:progressBlock completed:completedBlock];
    }
}

先原始缓存是否需要，如果进行原始缓存的判断是否包含硬盘缓存，如果包含那么为了高速缓存要对 downloadedData 进行转换为 cacheData。转换为 disk 容易缓存的格式，同时为了防止内存不够用使用自动释放池子。如果不包含 disk 缓存的话，就直接缓存使用 downloadedData。缓存完成要处理即调用callTransformProcessForOperation方法。

Transform process
#

对上面格式处理后的图片进行转换，转换后的图片进行缓存存储。然后回调使用转换后的图片。

知识点
#

oc 之 nullable，迎合 swift 可选类型，代表可以为 nil。苹果文档
oc 自动释放池。池子收回对象也会收回，与 runloop 的创建的释放池有区别。
信号量加锁。

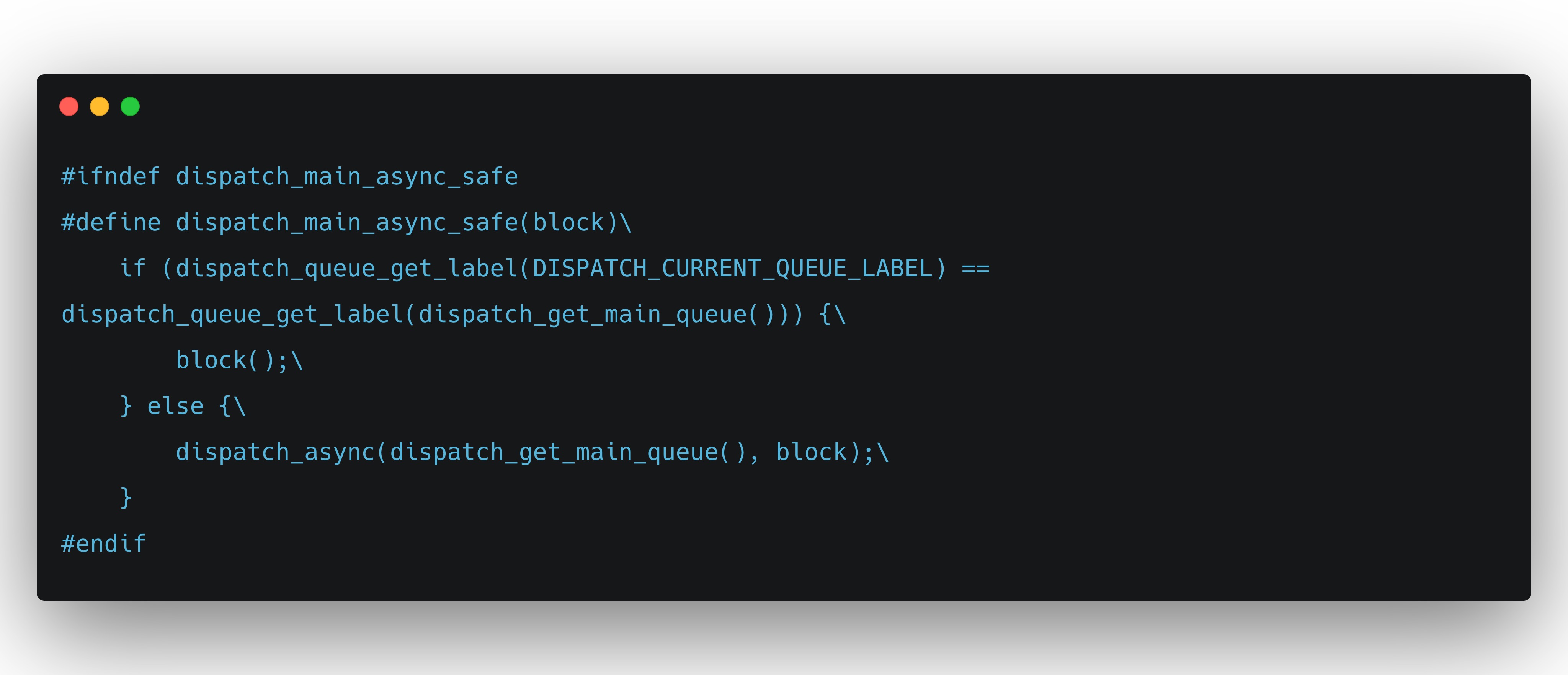

使用宏定义主线程回归主队列,

线程所在队列判断加宏定义

大量 block 回调，逆传值。
协议化对象
字典关联使用（SDWebImageContext），其中,SDWebImageContext *是在 5.0 中新引入的参数,可以灵活的自定义高级功能.SDWebImageContext/SDWebImageMutableContext 是以以 SDWebImageContextOption 为 key、id(指定类型或者协议)为 value 的 NSDictionary/NSMutableDictionary。blog 参考

源码地址
#

https://github.com/SDWebImage/SDWebImage/blob/master/SDWebImage/Core/SDWebImageManager.m
